亨特 - 萨克斯顿方程

亨特 - 萨克斯顿方程有解析解[1]：

${\displaystyle u(x,t)={\frac {1}{1-t/2}}*(x-t)+1}$

此外，Maple软件包 TWSolution 给出多个行波解：

tanh 展开法

${\displaystyle f1:=u(x,t)=-1.7045454545454545454+1.1363636363636363636*(-(1/4)*(6.336*ln(tanh(2.3+.88*x+1.5*t)-1)-6.336*ln(tanh(2.3+.88*x+1.5*t)+1)+9.2928)^{(}1/3)-(1/4*I)*sqrt(3)*(6.336*ln(tanh(2.3+.88*x+1.5*t)-1)-6.336*ln(tanh(2.3+.88*x+1.5*t)+1)+9.2928)^{(}1/3))^{2}}$

${\displaystyle f2:=u(x,t)=-1.7045454545454545454+1.1363636363636363636*(-(1/4)*(6.336*ln(tanh(2.3+.88*x+1.5*t)-1)-6.336*ln(tanh(2.3+.88*x+1.5*t)+1)+9.2928)^{(}1/3)+(1/4*I)*sqrt(3)*(6.336*ln(tanh(2.3+.88*x+1.5*t)-1)-6.336*ln(tanh(2.3+.88*x+1.5*t)+1)+9.2928)^{(}1/3))^{2}}$

${\displaystyle u(x,t)=-1.7045454545454545454+0.28409090909090909090(6.336ln(tanh(2.3+0.88x+1.5t)-1)-6.336ln(tanh(2.3+0.88x+1.5t)+1)+9.2928)^{(}2/3)}$

其中 f1、f2 是重解，因此，只有两个独立的行波解。

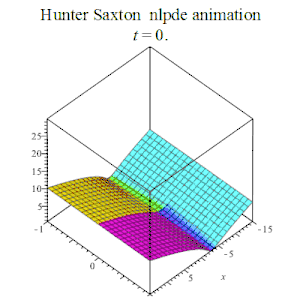

Hunter Saxton equation Maple TWSolution travelling wave solution1

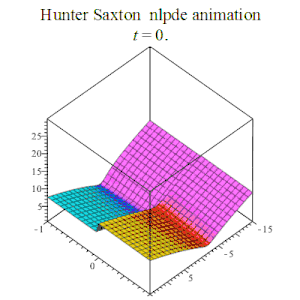

Hunter Saxton equation travelling wave solution3 with Maple TWSolution package

sech arctan 展开法

${\displaystyle f[1]:=-.20000000000000000000+(1/12)*(-(36*(1.3*arctan(1/sqrt(sech(2+3*x+.6*t)^{2}-1))*sqrt(sech(2+3*x+.6*t)+1)*sqrt(sech(2+3*x+.6*t)-1)-2.6*sqrt(sech(2+3*x+.6*t)^{2}-1)))/sqrt(sech(2+3*x+.6*t)^{2}-1))^{(}2/3)}$

${\displaystyle f[2]:=-.20000000000000000000+(1/3)*(-(1/4)*(-(36*(1.3*arctan(1/sqrt(sech(2+3*x+.6*t)^{2}-1))*sqrt(sech(2+3*x+.6*t)+1)*sqrt(sech(2+3*x+.6*t)-1)-2.6*sqrt(sech(2+3*x+.6*t)^{2}-1)))/sqrt(sech(2+3*x+.6*t)^{2}-1))^{(}1/3)-(1/4*I)*sqrt(3)*(-(36*(1.3*arctan(1/sqrt(sech(2+3*x+.6*t)^{2}-1))*sqrt(sech(2+3*x+.6*t)+1)*sqrt(sech(2+3*x+.6*t)-1)-2.6*sqrt(sech(2+3*x+.6*t)^{2}-1)))/sqrt(sech(2+3*x+.6*t)^{2}-1))^{(}1/3))^{2}}$ ${\displaystyle f[3]:=-.20000000000000000000+(1/3)*(-(1/4)*(-(36*(1.3*arctan(1/sqrt(sech(2+3*x+.6*t)^{2}-1))*sqrt(sech(2+3*x+.6*t)+1)*sqrt(sech(2+3*x+.6*t)-1)-2.6*sqrt(sech(2+3*x+.6*t)^{2}-1)))/sqrt(sech(2+3*x+.6*t)^{2}-1))^{(}1/3)+(1/4*I)*sqrt(3)*(-(36*(1.3*arctan(1/sqrt(sech(2+3*x+.6*t)^{2}-1))*sqrt(sech(2+3*x+.6*t)+1)*sqrt(sech(2+3*x+.6*t)-1)-2.6*sqrt(sech(2+3*x+.6*t)^{2}-1)))/sqrt(sech(2+3*x+.6*t)^{2}-1))^{(}1/3))^{2}}$ ${\displaystyle f[4]:=-.20000000000000000000+(1/3)*(-(1/4)*(187.2+140.4*x+28.08*t)^{(}1/3)-(1/4*I)*sqrt(3)*(187.2+140.4*x+28.08*t)^{(}1/3))^{2}}$ ${\displaystyle f[5]:=-.20000000000000000000+(1/3)*(-(1/4)*(187.2+140.4*x+28.08*t)^{(}1/3)+(1/4*I)*sqrt(3)*(187.2+140.4*x+28.08*t)^{(}1/3))^{2}}$ ${\displaystyle f[6]:=-.20000000000000000000+(1/12)*(187.2+140.4*x+28.08*t)^{(}2/3)}$ ${\displaystyle <f[7]:=-1.6666666666666666667*_{C}6+1.6666666666666666667*(-(1/4)*(9.36*Intat(1/sqrt(4*_{a}^{4}-5*_{a}^{2}+1),_{a}=JacobiSN(3+.6*x+_{C}6*t,2))+18.72)^{(}1/3)-(1/4*I)*sqrt(3)*(9.36*Intat(1/sqrt(4*_{a}^{4}-5*_{a}^{2}+1),_{a}=JacobiSN(3+.6*x+_{C}6*t,2))+18.72)^{(}1/3))^{2}}$ ${\displaystyle f[8]:=-1.6666666666666666667*_{C}6+1.6666666666666666667*(-(1/4)*(9.36*Intat(1/sqrt(4*_{a}^{4}-5*_{a}^{2}+1),_{a}=JacobiSN(3+.6*x+_{C}6*t,2))+18.72)^{(}1/3)+(1/4*I)*sqrt(3)*(9.36*Intat(1/sqrt(4*_{a}^{4}-5*_{a}^{2}+1),_{a}=JacobiSN(3+.6*x+_{C}6*t,2))+18.72)^{(}1/3))^{2}}$ ${\displaystyle f[9]:=-1.6666666666666666667*_{C}6+.41666666666666666668*(9.36*Intat(1/sqrt(4*_{a}^{4}-5*_{a}^{2}+1),_{a}=JacobiSN(3+.6*x+_{C}6*t,2))+18.72)^{(}2/3)}$

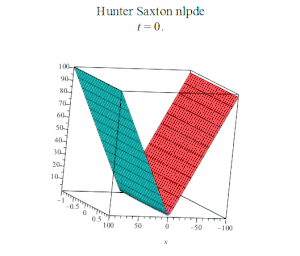

File:Hunter Saxton extended plot1.gif

综合展开

${\displaystyle p[12]:=-1.0714+.71429*(-.50821*((1.1*ln(cos(1.3+1.4*x+1.5*t)+sqrt(cos(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt((cos(1.3+1.4*x+1.5*t)-1.)*(cos(1.3+1.4*x+1.5*t)+1.))+1.2*sqrt(cos(1.3+1.4*x+1.5*t)+1.)*sqrt(cos(1.3+1.4*x+1.5*t)-1.))*(1.+sqrt(1/((cos(1.3+1.4*x+1.5*t)-1.)*(cos(1.3+1.4*x+1.5*t)+1.)))*sqrt(cos(1.3+1.4*x+1.5*t)-1.)*sqrt(cos(1.3+1.4*x+1.5*t)+1.))/(sqrt(cos(1.3+1.4*x+1.5*t)+1.)*sqrt(cos(1.3+1.4*x+1.5*t)-1.)))^{(}1/3)-(.88026*I)*((1.1*ln(cos(1.3+1.4*x+1.5*t)+sqrt(cos(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt((cos(1.3+1.4*x+1.5*t)-1.)*(cos(1.3+1.4*x+1.5*t)+1.))+1.2*sqrt(cos(1.3+1.4*x+1.5*t)+1.)*sqrt(cos(1.3+1.4*x+1.5*t)-1.))*(1.+sqrt(1/((cos(1.3+1.4*x+1.5*t)-1.)*(cos(1.3+1.4*x+1.5*t)+1.)))*sqrt(cos(1.3+1.4*x+1.5*t)-1.)*sqrt(cos(1.3+1.4*x+1.5*t)+1.))/(sqrt(cos(1.3+1.4*x+1.5*t)+1.)*sqrt(cos(1.3+1.4*x+1.5*t)-1.)))^{(}1/3))^{2}}$

${\displaystyle p[13]:=-1.0714+.71429*(-.50821*((1.1*ln(cos(1.3+1.4*x+1.5*t)+sqrt(cos(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt((cos(1.3+1.4*x+1.5*t)-1.)*(cos(1.3+1.4*x+1.5*t)+1.))+1.2*sqrt(cos(1.3+1.4*x+1.5*t)+1.)*sqrt(cos(1.3+1.4*x+1.5*t)-1.))*(1.+sqrt(1/((cos(1.3+1.4*x+1.5*t)-1.)*(cos(1.3+1.4*x+1.5*t)+1.)))*sqrt(cos(1.3+1.4*x+1.5*t)-1.)*sqrt(cos(1.3+1.4*x+1.5*t)+1.))/(sqrt(cos(1.3+1.4*x+1.5*t)+1.)*sqrt(cos(1.3+1.4*x+1.5*t)-1.)))^{(}1/3)+(.88026*I)*((1.1*ln(cos(1.3+1.4*x+1.5*t)+sqrt(cos(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt((cos(1.3+1.4*x+1.5*t)-1.)*(cos(1.3+1.4*x+1.5*t)+1.))+1.2*sqrt(cos(1.3+1.4*x+1.5*t)+1.)*sqrt(cos(1.3+1.4*x+1.5*t)-1.))*(1.+sqrt(1/((cos(1.3+1.4*x+1.5*t)-1.)*(cos(1.3+1.4*x+1.5*t)+1.)))*sqrt(cos(1.3+1.4*x+1.5*t)-1.)*sqrt(cos(1.3+1.4*x+1.5*t)+1.))/(sqrt(cos(1.3+1.4*x+1.5*t)+1.)*sqrt(cos(1.3+1.4*x+1.5*t)-1.)))^{(}1/3))^{2}}$

${\displaystyle p[16]:=-1.0714+.71429*(-.50821*((1.1*ln(sin(1.3+1.4*x+1.5*t)+sqrt(sin(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt((sin(1.3+1.4*x+1.5*t)-1.)*(sin(1.3+1.4*x+1.5*t)+1.))+1.2*sqrt(sin(1.3+1.4*x+1.5*t)+1.)*sqrt(sin(1.3+1.4*x+1.5*t)-1.))*(1.+sqrt(1/((sin(1.3+1.4*x+1.5*t)-1.)*(sin(1.3+1.4*x+1.5*t)+1.)))*sqrt(sin(1.3+1.4*x+1.5*t)-1.)*sqrt(sin(1.3+1.4*x+1.5*t)+1.))/(sqrt(sin(1.3+1.4*x+1.5*t)+1.)*sqrt(sin(1.3+1.4*x+1.5*t)-1.)))^{(}1/3)-(.88026*I)*((1.1*ln(sin(1.3+1.4*x+1.5*t)+sqrt(sin(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt((sin(1.3+1.4*x+1.5*t)-1.)*(sin(1.3+1.4*x+1.5*t)+1.))+1.2*sqrt(sin(1.3+1.4*x+1.5*t)+1.)*sqrt(sin(1.3+1.4*x+1.5*t)-1.))*(1.+sqrt(1/((sin(1.3+1.4*x+1.5*t)-1.)*(sin(1.3+1.4*x+1.5*t)+1.)))*sqrt(sin(1.3+1.4*x+1.5*t)-1.)*sqrt(sin(1.3+1.4*x+1.5*t)+1.))/(sqrt(sin(1.3+1.4*x+1.5*t)+1.)*sqrt(sin(1.3+1.4*x+1.5*t)-1.)))^{(}1/3))^{2}}$

${\displaystyle p[17]:=-1.0714+.71429*(-.50821*((1.1*ln(sin(1.3+1.4*x+1.5*t)+sqrt(sin(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt((sin(1.3+1.4*x+1.5*t)-1.)*(sin(1.3+1.4*x+1.5*t)+1.))+1.2*sqrt(sin(1.3+1.4*x+1.5*t)+1.)*sqrt(sin(1.3+1.4*x+1.5*t)-1.))*(1.+sqrt(1/((sin(1.3+1.4*x+1.5*t)-1.)*(sin(1.3+1.4*x+1.5*t)+1.)))*sqrt(sin(1.3+1.4*x+1.5*t)-1.)*sqrt(sin(1.3+1.4*x+1.5*t)+1.))/(sqrt(sin(1.3+1.4*x+1.5*t)+1.)*sqrt(sin(1.3+1.4*x+1.5*t)-1.)))^{(}1/3)+(.88026*I)*((1.1*ln(sin(1.3+1.4*x+1.5*t)+sqrt(sin(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt((sin(1.3+1.4*x+1.5*t)-1.)*(sin(1.3+1.4*x+1.5*t)+1.))+1.2*sqrt(sin(1.3+1.4*x+1.5*t)+1.)*sqrt(sin(1.3+1.4*x+1.5*t)-1.))*(1.+sqrt(1/((sin(1.3+1.4*x+1.5*t)-1.)*(sin(1.3+1.4*x+1.5*t)+1.)))*sqrt(sin(1.3+1.4*x+1.5*t)-1.)*sqrt(sin(1.3+1.4*x+1.5*t)+1.))/(sqrt(sin(1.3+1.4*x+1.5*t)+1.)*sqrt(sin(1.3+1.4*x+1.5*t)-1.)))^{(}1/3))^{2}}$

${\displaystyle p[20]:=-1.0714+.71429*(-.64030*((-1.1*arctan(1/sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt(sec(1.3+1.4*x+1.5*t)-1.)*sqrt(sec(1.3+1.4*x+1.5*t)+1.)+1.2*sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))/sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))^{(}1/3)-(1.1091*I)*((-1.1*arctan(1/sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt(sec(1.3+1.4*x+1.5*t)-1.)*sqrt(sec(1.3+1.4*x+1.5*t)+1.)+1.2*sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))/sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))^{(}1/3))^{2}}$

${\displaystyle p[21]:=-1.0714+.71429*(-.64030*((-1.1*arctan(1/sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt(sec(1.3+1.4*x+1.5*t)-1.)*sqrt(sec(1.3+1.4*x+1.5*t)+1.)+1.2*sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))/sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))^{(}1/3)+(1.1091*I)*((-1.1*arctan(1/sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt(sec(1.3+1.4*x+1.5*t)-1.)*sqrt(sec(1.3+1.4*x+1.5*t)+1.)+1.2*sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))/sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))^{(}1/3))^{2}}$

${\displaystyle p[29]:=-1.0714+.73794*((1.1*ln(cos(1.3+1.4*x+1.5*t)+sqrt(cos(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt((cos(1.3+1.4*x+1.5*t)-1.)*(cos(1.3+1.4*x+1.5*t)+1.))+1.2*sqrt(cos(1.3+1.4*x+1.5*t)+1.)*sqrt(cos(1.3+1.4*x+1.5*t)-1.))*(1.+sqrt(1/((cos(1.3+1.4*x+1.5*t)-1.)*(cos(1.3+1.4*x+1.5*t)+1.)))*sqrt(cos(1.3+1.4*x+1.5*t)-1.)*sqrt(cos(1.3+1.4*x+1.5*t)+1.))/(sqrt(cos(1.3+1.4*x+1.5*t)+1.)*sqrt(cos(1.3+1.4*x+1.5*t)-1.)))^{(}2/3)}$

${\displaystyle p[31]:=-1.0714+.73794*((1.1*ln(sin(1.3+1.4*x+1.5*t)+sqrt(sin(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt((sin(1.3+1.4*x+1.5*t)-1.)*(sin(1.3+1.4*x+1.5*t)+1.))+1.2*sqrt(sin(1.3+1.4*x+1.5*t)+1.)*sqrt(sin(1.3+1.4*x+1.5*t)-1.))*(1.+sqrt(1/((sin(1.3+1.4*x+1.5*t)-1.)*(sin(1.3+1.4*x+1.5*t)+1.)))*sqrt(sin(1.3+1.4*x+1.5*t)-1.)*sqrt(sin(1.3+1.4*x+1.5*t)+1.))/(sqrt(sin(1.3+1.4*x+1.5*t)+1.)*sqrt(sin(1.3+1.4*x+1.5*t)-1.)))^{(}2/3)}$

${\displaystyle p[32]:=-1.0714+1.1714*((-1.1*arctan(1/sqrt(csc(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt(csc(1.3+1.4*x+1.5*t)-1.)*sqrt(csc(1.3+1.4*x+1.5*t)+1.)+1.2*sqrt(csc(1.3+1.4*x+1.5*t)^{2}-1.))/sqrt(csc(1.3+1.4*x+1.5*t)^{2}-1.))^{(}2/3)}$

${\displaystyle p[33]:=-1.0714+1.1714*((-1.1*arctan(1/sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt(sec(1.3+1.4*x+1.5*t)-1.)*sqrt(sec(1.3+1.4*x+1.5*t)+1.)+1.2*sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))/sqrt(sec(1.3+1.4*x+1.5*t)^{2}-1.))^{(}2/3)}$

${\displaystyle <p[34]:=-1.0714+1.1714*((-1.1*arctan(1/sqrt(sech(1.3+1.4*x+1.5*t)^{2}-1.))*sqrt(sech(1.3+1.4*x+1.5*t)-1.)*sqrt(sech(1.3+1.4*x+1.5*t)+1.)+1.2*sqrt(sech(1.3+1.4*x+1.5*t)^{2}-1.))/sqrt(sech(1.3+1.4*x+1.5*t)^{2}-1.))^{(}2/3)}$

${\displaystyle }$

${\displaystyle }$

${\displaystyle }$

${\displaystyle }$

${\displaystyle }$

${\displaystyle }$

${\displaystyle }$

${\displaystyle }$

${\displaystyle }$

雅可比橢圓函數展开

1. Anders Samuelsen Nordli On the Hunter-Saxton equation，Norwegian University of Science and Technology，p38, June 2012

1. *谷超豪 《孤立子理论中的达布变换及其几何应用》 上海科学技术出版社
2. *阎振亚著 《复杂非线性波的构造性理论及其应用》 科学出版社 2007年
3. 李志斌编著 《非线性数学物理方程的行波解》 科学出版社
4. 王东明著 《消去法及其应用》 科学出版社 2002
5. *何青 王丽芬编著 《Maple 教程》 科学出版社 2010 ISBN 9787030177445
6. Graham W. Griffiths William E.Shiesser Traveling Wave Analysis of Partial Differential p135 Equations Academy Press
7. Richard H. Enns George C. McCGuire, Nonlinear Physics Birkhauser,1997
8. Inna Shingareva, Carlos Lizárraga-Celaya,Solving Nonlinear Partial Differential Equations with Maple Springer.
9. Eryk Infeld and George Rowlands,Nonlinear Waves,Solitons and Chaos,Cambridge 2000
10. Saber Elaydi,An Introduction to Difference Equationns, Springer 2000
11. Dongming Wang, Elimination Practice,Imperial College Press 2004
12. David Betounes, Partial Differential Equations for Computational Science: With Maple and Vector Analysis Springer, 1998 ISBN 9780387983004
13. George Articolo Partial Differential Equations & Boundary Value Problems with Maple V Academic Press 1998 ISBN 9780120644759
